Floor Shot Blast Machine
Input voltage: Customized
Total power (kw): 18.3
Blast motor power (kw): 1×11kw
Type of blast motor: Special super energy efficiency
254mm 10 Inch Concrete Floor Shot Blasting Machine Marking Removal Shot Blaster Shot Blasting
The SG 254 floor shot blasting machine delivers precise and efficient shot blasting performance, flexible power adaptability, strong and stable output, wide cleaning coverage, adjustable running speed, and a convenient automatic operation mode. It is widely used for shot blasting on cement roads, concrete surfaces, steel plates, and similar materials.
The machine's running speed ranges from 0.5 to 33 m/min, allowing users to adjust it flexibly based on the ground material and processing requirements. For fragile surfaces or fine processing tasks, a lower speed can be selected to minimize damage. For large areas of conventional flooring, a higher speed can be used to significantly improve work efficiency.
Product data
According to your demand: SG 1-254T shot blasting machine product data as following:
|
NO |
Product model |
Multipurpose movable type shot blasting machine (SG series 1-254T) |
|
|
1 |
Shot blast unit |
Shot blasting width |
254mm |
|
Input voltage |
Customized |
||
|
Total power (kw) |
18.3 |
||
|
Blast motor power (kw) |
1×11kw |
||
|
Type of blast motor |
Special super energy efficiency |
||
|
Shot blast cleaning range (mm) |
254 |
||
|
Running speed (m/min) |
0.5-33 |
||
|
Running method |
Run automatically in horizontal direction |
||
|
2 |
Vacuum cleaner |
Vacuum cleaner model |
V254T |
|
Vacuum cleaner power (kw) |
6.2 |
||
|
Power of Air compressor (kw) |
2.2 |
||
|
Blower fan power (kw) |
4 |
||
|
Filter number (piece) |
6 |
||
|
Filter type |
Imported film and super filter |
||
|
Number of pulse valve (piece) |
2 |
||
|
Dust cleaning form |
Automatic reverse direction blowing |
||
|
Electronic pulse valve |
Digital pulse (two level control system of intelligent logic control system) |
||
|
Connecting pipe diameter (mm) |
120 |
||
|
Connecting pipe length (m) |
15 |
||
Product detail
.
Model identification and core parameters

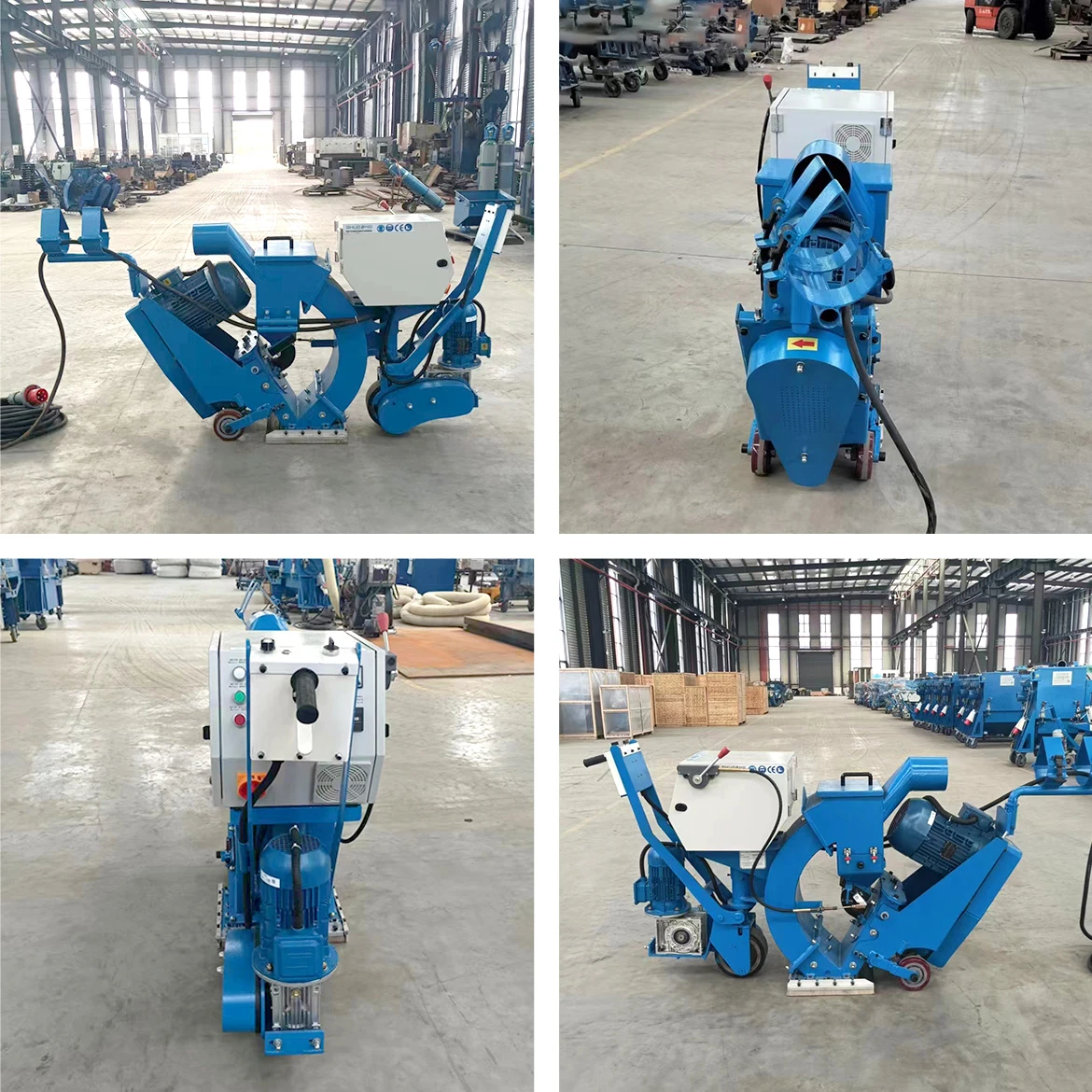

The Shugong SG1-254T mobile waterproof pavement shot blasting machine is part of the Shugong SG Mettmann series and features a shot blasting width of 254 mm.
Core parameters
Shot blasting efficiency
Approximately 180㎡ per hour (concrete surface cleaning), with a daily processing capacity exceeding 3000㎡.
Travel speed
0–30 m/min (frequency conversion motor with chain drive and brake device to ensure stable speed).
Power configuration
Main shot blasting motor power: 11 kW; total power: 18.3 kW (single shot blasting head design).
Technical features and design advantages
Patented Technology
Shot material separation device: Features a patented airflow cleaning system that reduces equipment wear, improves surface cleanliness, and lowers construction costs.
Dust removal system: Uses Japanese-brand filter elements with automatic backblowing for dust removal, enabling dust-free construction.
.
Internationalization of Core Components
The shot blasting motor uses an American brand, the travel drive system is from Mitsubishi Japan, the electrical system integrates French Schneider components, and the soft start system is by Rockwell, USA.
Adaptability and Stability
Optimized for China's construction environment, it offers stable operation and high cost-effectiveness, making it suitable for airport marking line removal, subway construction, small-area bridge and tunnel roughening, and other applications.
Customer used shot blaster with vacuum cleaner and offered us good feedback as following
