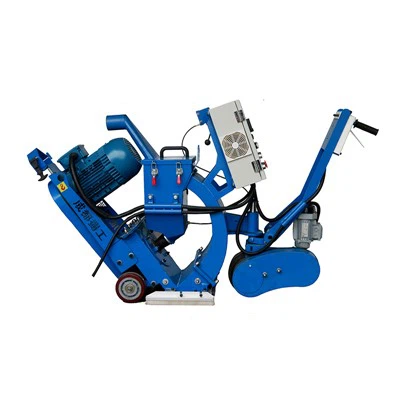

Vertical 254MM Shot Blasting Machine

Vertical 254MM Shot Blasting Machine





The Vertical 254mm shot blaster is a high-efficiency, electrically powered shot blaster specifically designed for vertical surface cleaning. Suitable for steel and concrete surfaces, it quickly removes old coatings and paint, providing an ideal roughness base for subsequent coatings.

Optimized for Vertical Operations

Easily handles tall vertical structures such as oil tanks, water tanks, ship hulls, and wind turbine towers, eliminating the need for traditional scaffolding and improving work efficiency.

Supports bidirectional sandblasting, reducing equipment movement frequency and enhancing continuous operation capabilities.

Electric Drive, Environmentally Friendly and Efficient

Compared to pneumatic equipment, the electric system consumes less energy, has lower operating costs, and does not rely on compressed air, making it suitable for construction sites with stable power supplies.

Relatively low operating noise makes it more suitable for work areas with high environmental requirements.

Wired Control, Safe and Convenient Operation

Equipped with a wired control station, operators can precisely control the equipment's start, stop, and direction of movement from a safe distance, improving safety during high-altitude or confined space operations.

Intuitive control logic, low learning curve, reducing training costs.

Wide range of applications

Steel surfaces: Paint removal, rust removal, coating stripping, surface activation treatment.

Concrete surfaces: Cleaning dirt, old coatings, and laitance layers; improving adhesion.

Especially suitable for industrial maintenance projects in petrochemical, shipbuilding, energy (wind power), and bridge industries.





1	产品型号 model	蜀工SG254VH-EBE型垂直抛丸清理系统(254mm) SHUGONG SG254VH-EBE vertical shot blasting system (254mm)
2	抛丸宽度 Shot blasting width	254mm
3	主要用途 use	石油储罐内壁垂直抛丸,船舶修造行业船舷清理,大口径管道,风电塔筒的外表面清理等 Vertical shot blasting on the inner/outside wall of oil storage tanks, shipboard cleaning in shipbuilding industry, large-diameter pipelines, outer surface cleaning of wind turbine towers, etc.
4	电源 power supply	Custom
5	总功率(kw) Total power	>17.2
6	抛丸电机功率(kw) Shot blasting motor power	1×11kw
7	抛丸电机 Shot blasting motor	custom
8	抛丸清理宽度(mm) Shot blasting width (mm)	254
9	钢铁表面清理效率(㎡/h) Steel surface cleaning efficiency	＞20平方钢铁表面 >20 square steel surface
10	垂直移动速度(m/min) Vertical movement speed	0.5-15
11	移动方式 Movable	卷扬提升装置 lifting device
12	抛丸机质量(kg) Shot blasting machine weight	200kg
13	配套吸尘器型号 Matching vacuum cleaner model	MettmannSG854
14	吸尘器功率(kw) Vacuum cleaner power	6.2
15	吸尘器风机功率(kw) Vacuum cleaner fan power	4
16	滤芯数量(个) Number of filter elements (a)	8
17	滤芯类型 Filter type	进口覆膜超微滤芯 Imported film ultra-fine filter
18	脉冲阀数量(个) Number of pulse valves (a)	3
19	灰尘清理形式 Dust cleaning form	自动反吹 Automatic backflushing
20	电子脉冲阀 Electronic pulse valve	数字脉冲(逻辑智能控制系统二级控制系统) Digital Pulse (Logical Intelligent Control System Secondary Control System)
21	连接管直径(mm) Connecting pipe diameter (mm)	100mm And 150mm
22	连接管长度(m) Connecting pipe length (m)	30







Vertical 254 Shot Blaster





No	Product model		Multipurpose movable type shot blasting machine (SG series 1-254)
1	Shot blast unit	Shot blasting width	254mm
		Application	vertical wall; ship hull derusting vertical shot blasting; oil  tank vertical shot blasting; Customized
		Input voltage	380v 3 phase 50HZ / Customized
		Blast motor power (kw)	1×11kw
		Color	Customize
		Type of blast motor	Special super energy efficiency
		Shot blast cleaning range (mm)	254
		Cleaning efficiency (m²/h)	About 45
		Logo	Customize
		Running method	Run automatically in vertical direction
		Motor	Imported Motor
