Self Propelled Shot Blasting Machine
Input voltage: 380v 3 phase 50HZ / Customized
Blast motor power (kw): 1×4kw
Driving motor power: 0.18kw
Type of blast motor: Special super energy efficiency
Product Detail

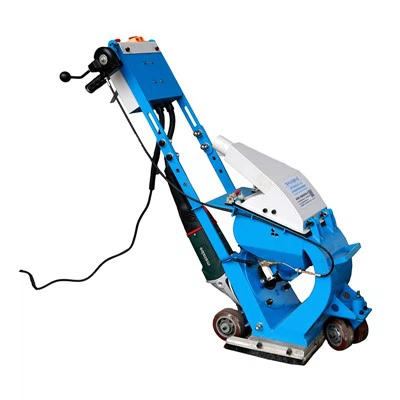

The 8-inch shot blaster is an affordable self-propelled sandblasting system with significantly improved ease of operation and maneuverability. Key upgrades include integrated drive controls on the steering handle, optimizing the user experience. Laser-cut components, advanced manufacturing processes, and powder coating ensure superior quality and long service life.
As an 8-inch self-propelled sandblaster, its self-propelled operation greatly increases productivity and achieves uniform sandblasting and surface contouring. With a sand consumption of less than 9 pounds per hour, it completes stripping, cleaning, and contouring in one step, providing an ideal substrate for subsequent coating or overcoat applications. This sandblaster is suitable for industrial floors, warehouses, commercial or residential garage floors, and can process up to 450 to 600 square feet per hour. Furthermore, the 1-8DPS30 can be used as a complement to larger sandblasters, expanding application flexibility.
Maintenance and Troubleshooting
Daily Maintenance:
Daily: Inspect liner wear (replace if thickness <5mm), lubricate moving parts.
Weekly: Clean the filter and calibrate the drive control system.
Common Problem Troubleshooting:
Uneven Sandblasting: Check for blockage in the abrasive flow valve; adjust the EZ-adjust angle.
Equipment Not Moving: Verify the drive button connection; check the battery or power supply (if applicable).
Dust Leakage: Tighten the vacuum cleaner connection; replace the sealing ring.
Safety Warnings: Do not operate in damp environments; keep children away from the work area.
Application scenarios
Typical Uses
Pre-treatment of industrial floor coatings, cleaning of parking lot waterproof layer bases, small highway construction, and landscape pavement work.
Removal of concrete surface slurry, crack exposure, and anti-slip treatment.
Restrictions
Applicable only to dry, hard, oil-free horizontal surfaces, not suitable for inclined or humid environments.
Product Use
FAQ
Portable Concrete Shot Blaster Mark Line Shot Blasting
Product Data
|
No |
Product model |
Multipurpose movable type shot blasting machine (SG series 1-200) |
|
|
1 |
Shot blast unit |
Shot blasting width |
200mm |
|
Application |
Maintenance of bridge Ground floor project-based surface treatment Maintenance of highways Maintenance of municipal road Mantenance and derusting of hull surface Cleaning the rubber on airport runway Cleaning, derusting and depitching for the surface of steel structure Removal of zebra crossing Customized |
||
|
Input voltage |
380v 3 phase 50HZ / Customized |
||
|
Blast motor power (kw) |
1×4kw |
||
|
Driving motor power |
0.18kw |
||
|
Type of blast motor |
Special super energy efficiency |
||
|
Shot blast cleaning range (mm) |
200 |
||
|
Cleaning efficiency (m²/h) |
About 108 (Concrete pavement surface) |
||
|
Running speed (m/min) |
0.5-33 |
||
|
Running method |
Run automatically in horizontal direction |
||
|
Weight of Shot blast unit (kg) |
146 |
||
